Qianli IR Fire Eye Infrared Eye PCB Thermal Camera – Fast Motherboard Diagnosis

Qianli IR Fire Eye Infrared Eye PCB Thermal Camera – Fast Motherboard Diagnosis

The Qianli IR Fire Eye Infrared Eye PCB Thermal Camera is a compact and professional thermal imaging solution designed for fast and accurate diagnosis of mobile phone and electronic device motherboards. It helps repair technicians visually identify abnormal heat, potential short circuits, overheating components, and other temperature-related PCB faults without relying solely on traditional troubleshooting methods.

Featuring a high-resolution 256 × 192 thermal imaging sensor, Android Type-C connectivity, temperature tracking, regional temperature measurement, high-temperature alerts, and multiple color palettes, the Fire Eye provides a practical diagnostic solution for professional motherboard repair.

Its lightweight and portable design makes it suitable for mobile phone, iPad, tablet, smartwatch, laptop, and other PCB repair applications. The accompanying Android application provides flexible thermal analysis and measurement functions, allowing technicians to quickly locate abnormal temperature areas and improve repair efficiency.

Key Features

• Fast PCB Fault Detection: Quickly identifies abnormal heat generated by shorted or defective components.
• 256 × 192 Thermal Resolution: Provides detailed thermal imaging for accurate component-level inspection.
• Android Type-C Interface: Connects directly to compatible Android devices for convenient operation.
• Portable Design: Compact construction makes it easy to carry and use directly at the repair workstation.
• Temperature Tracking: Supports automatic high- and low-temperature tracking for easier fault identification.

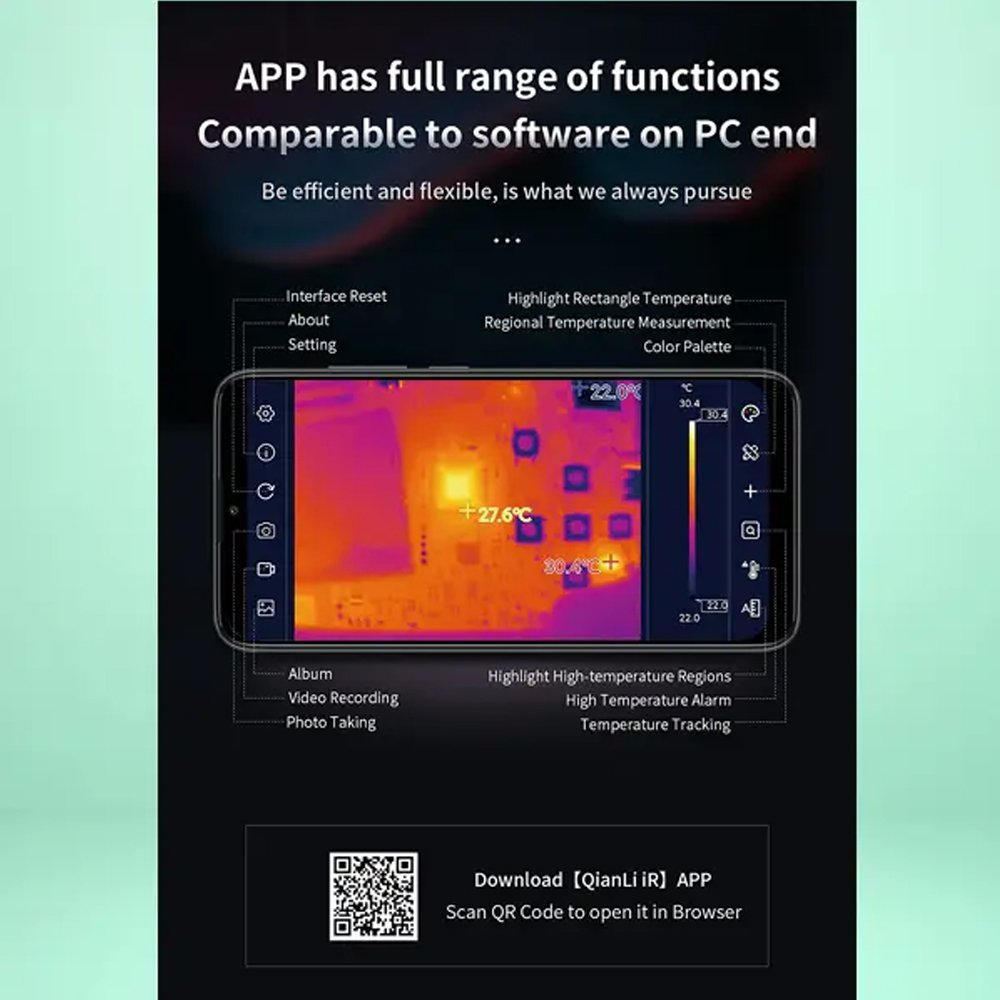

• Regional Temperature Measurement: Measure temperature using points, lines, and defined areas on the thermal image.
• High-Temperature Alarm: Helps technicians quickly recognize areas exceeding the selected temperature range.

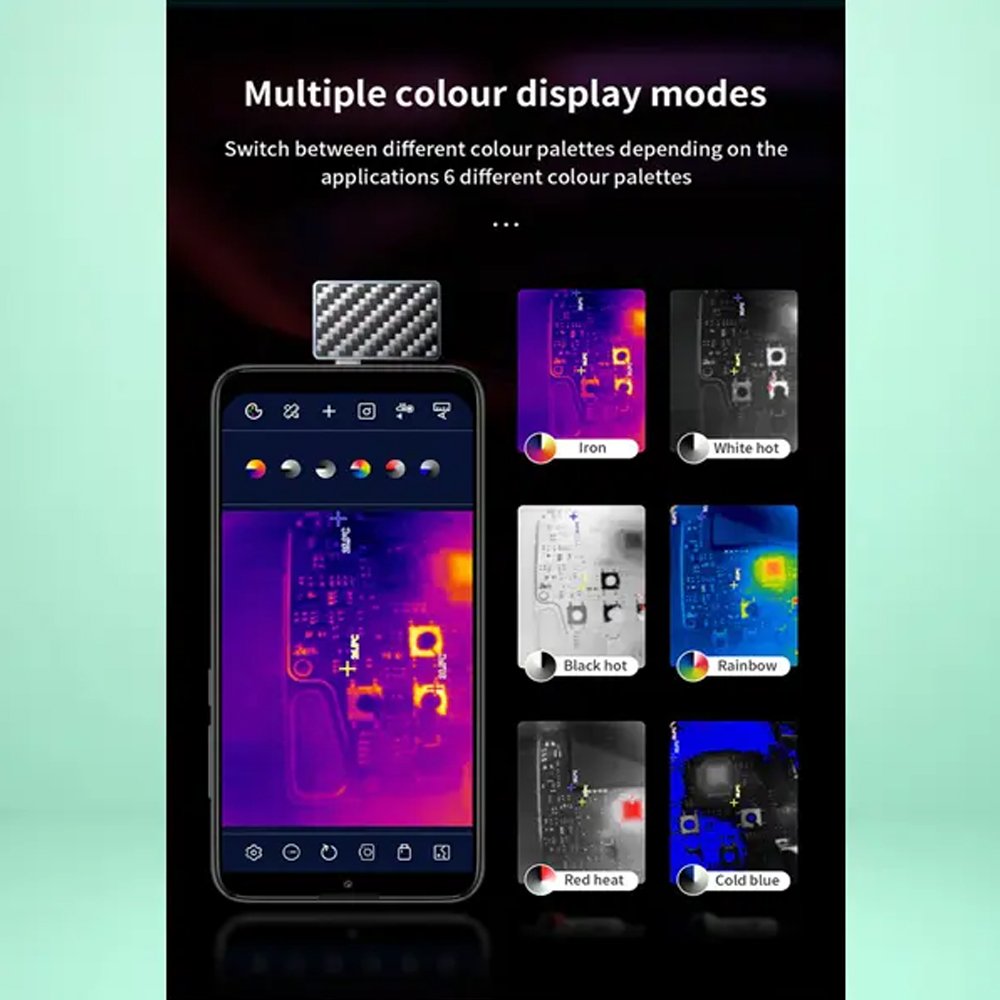

• Multiple Color Palettes: Different thermal color modes make hot and cold areas easier to distinguish.
• 80–180 mm Focal Range: Designed for close-range electronics and motherboard inspection.
• Photo & Video Recording: Supports capturing thermal images and recording video for diagnosis and repair documentation.
• Wide Application: Suitable for mobile phones, iPads, tablets, smartwatches, laptops, PCB development, and electronic troubleshooting.
• No PC Required: Designed for convenient plug-and-use operation through a compatible Android device.

Technical Specifications
